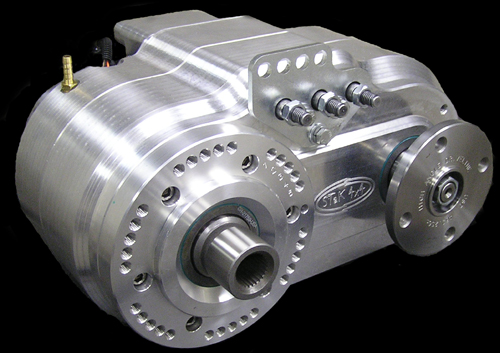

Atlas 4sp
CASE:
Material: 356-T6 Heat Treated Aluminum
Weight: 125 lbs. (dry)
INTERNAL COMPONENTS:
Gears: Helical Cut
Planetary Gears: 6 Gears Helical Cut
Bearings: Needle & Taper Rollers
Synchronizers: Borg Warner
Available Input Shaft Splines: 21, 23, 27, 29, 31, 32, 34
Tail Shaft H.D., 32 Spline,
Front Output 32 Spline
RATIOS:
Low Range: (2.0:1, 2.72:1, & 5.44:1) or (2.72:1, 3.8:1, & 10.34:1)
High Range 1:1
Atlas 2sp
CASE:
Material: 356-T6 Heat Treated Aluminum
Weight: 110 lbs. (dry)
INTERNAL COMPONENTS:
Gears: Helical Cut
Bearings: Needle & Taper Rollers
Synchronizers: Borg Warner
Available Input Shaft Splines: 10, 21, 23, 25, 27, 28, 29, 31, 32, 34, 35
Tail Shaft H.D., 32 Spline,
Front Output 26 Spline or 32 Spline
RATIOS:
Low Range: 2.0:1 or 3.0:1 or 3.8:1 or 4.3:1 or 5.0:1 or 6.0:1
High Range 1:1

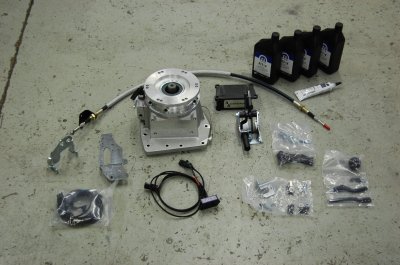

Check out our install on the RubiCrawler in the January issue of CRAWL magazine
